Overview

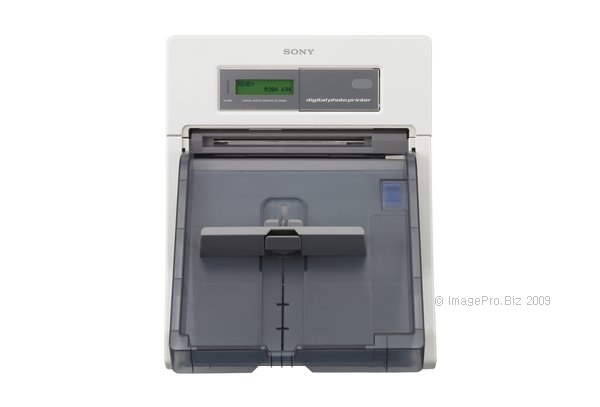

This unique printer delivers a powerful combination of exceptional quality, fast speeds and high profitability for a wide range of event photography and retail applications. The UP-DR200 has advanced digital photofinishing to a new level of productivity and performance, making it the ultimate choice! This workhorse printer offers approximately 30% greater paper capacities than its predecessor. It can hold 700 4x6 prints or 800 5x7 prints. And the front-loading operation and auto-loading mechanism of the UP-DR200 makes for the easiest replacement of paper and ribbon ever. Simply open the front door and insert the roll and ribbon! And, the printing side of the paper is on the inside of the roll, helping to eliminate fingerprints, paper curl and waste.
Product Specifications
General Specifications: Detail: Dimensions (W x H x D) 11 1/8 x 14 1/8 x 18 1/8 inches Power Consumption 5 to 2.5 A Power Requirements AC 100-240 V, 50/60 Hz Safety Standards UL60950-1 listed, CSA C22.2 No. 60950-1 EN60950-1 IEC60950-1 Weight Approx. 37 lb 7 oz Printing Performance Specifications: Detail: Driver Software Windows 2000/XP Professional & Macintosh Gradation 8 bits per color Image Pixels Transferred 2UPC-R203PF: 1210 x 1728 pixels 2UPC-R204: 1382 x 2048 pixels 2UPC-R205: 1728 x 2380 pixels 2UPC-R206: 2048 x 2724 pixels Ink Supply Method Ink Ribbon Interface Hi-Speed USB (USB 2.0) Paper Feed Method Roll paper Print Capacity 2UPC-203PF: 770 prints 2UPC-R204: 700 prints 2UPC-R205: 400 prints 2UPC-R206: 350 prints Print Size 2UPC-R203PF: 3 1/2 x 5 inches (89 x 127 mm) 2UPC-R204: 4 x 6 inches (102 x 152 mm) 2UPC-R205: 5 x 7 inches (127 x 178 mm) 2UPC-R206: 6 x 8 inches (152 x 204 mm) Printing Method Dye Sublimation Printing Printing Time 2UPC-R203PF: approx. 7.8 seconds 2UPC-R204: approx. 8 seconds 2UPC-R205: approx. 12.5 seconds 2UPC-R206: approx. 14.5 seconds Resolution 330 dpi Spool Memory For additional one picture
Accessories
Features: Benefits: Superb Print Quality Incorporating Sony dye sublimation technology, the UP-DR200 produces photoquality prints. Crisp and vibrant prints can be created with natural, continuous tones, on print media that is very similar in texture to traditional photography paper. In addition, the UP-DR200 offers two types of surface finish - glossy and ProMatte - and it can print onto four different paper sizes: 3.5 x 5 inch, 4 x 6 inch, 5 x 7 inch, and 6x8 inch. High-volume Printing With its large paper capacity, the UP-DR200 is a true workhorse. For example, it can hold a roll of paper for 700 4 x 6 inch prints, 400 5 x 7 inch prints, or 350 6 x 8 inches. This high-volume printing capability results in less time spent replacing paper media. Plus, the paper roll itself is small in size, so the printer retains a compact form. Easy to Maintain with Auto-loading Mechanism and Front Operation The front-loading operation and auto-loading mechanism of the UP-DR200 enables easy replacement of paper and ribbon. Simply open the front door and insert the roll and ribbon! Maintaining the UP-DR200 does not require special technical training. The printing side of the paper roll has been inverted to avoid leaving fingerprints during paper replacement. Moreover, front loading allows the printer to be installed in even the tightest spaces, such as a kiosk. In fact, the UP-DR200 is ideal for kiosk applications as the paper outlet is located at the upper of the unit. The convenient rear panel provides recessed interface connections that make setup and access easy. Plus, any power cord or USB cables, can be clamped to the main unit to prevent them from being unplugged. High-speed Printing The UP-DR200 operates at high speed, regardless of the print size. For example, printing a 4 x 6 inch image takes approximately 8 seconds, a 5 x 7 inch takes approximately 12.5 seconds, and a 6 x 8 inch image takes 14.5 seconds. High throughput The UP-DR200 can produce 450 4 x 6 inch prints per hour. This high throughput rate maximizes system uptime, which will make your photo-printing business a success. *When printing pictures of 50% plain gray color consecutively at 25 °C. USB Interface The UP-DR200 is equipped with a Hi-Speed USB (USB 2.0) interface that allows for fast image data transfer. PC Compatibility To enhance its flexibility, the printer is supplied with PC driver software - compatible with Microsoft® Windows® XP Professional and Vista. Low Noise Level The UP-DR200 operates at a low noise level, thereby minimizing disruptions in your workplace. Gray Balance Adjustment Capability Using the printed gray balance chart, it is easy to specify the neutral gray color. The UP-DR200 can distinguish between delicate gray colors and reproduce the preferred color. Real-time Monitoring of Printer Status via LCD The UP-DR200 offers real-time monitoring of the remaining number of prints, the total number of prints, the printer status, and any error status via its integrated LCD panel.
