*The 8"x10" print result can be made within 30 seconds, and the 8"x12" - within 35 seconds and these are the fastest speed in roll type large format printer. The experience of SHINKO dye-sub printer technologies now introduces high speed, 8"x12" size,and roll-fed printer CHC-S1245. Printer consumable is less expensive than exsiting 8"x10"and 8"x12" cut sheet printer. CHC-S1245 accelerates your business expansion with competitive price and high value of print. Roll-Fed mechanism gives printer edge-to-edge print,paper-jam free,and low-waste operation,comparing with cut sheet printer. Low waste ------ Edge-to-edge print enable to reduce cutting area of prints. Paper-jam free ------ roll-fed structure has superiority in anti-paper-jam provision,carrying out stabilized paper feeding. S1245 takes over simple and tough mechanism from S1045 series which recorded one of the best sales in the dye-sub printers. Not only full size print but also multiple print is availabe. The deatils are shown in the back.

Model CHC-S1245 Print method Dye sublimation thermal transfer Resolution 300dpi Print size 203.0mm x 254.0mm(8 inch x 10 inch) / 203.0mm x 304.8mm(8inch x 12inch) Multiple print (8x4")x2, (8x5")x2, (8x4" & 8x6") with 8x10" / (8x6")x2, (8x4")x3 with 8x12" No.of prints 280 per roll (8x10") / 230 per roll (8x12") Printing time 30 sec. per sheet(standard mode), 39 sec. per sheet(high quality mode)(*1) 35 sec. per sheet(standard mode), 46 sec. per sheet(high quality mode)(*1) Ink ribbon YMC + OP Paper Roll-to-cut, Automatic feed Buffer memory 32 M byte x 2 Interface USB2.0 Printer driver, software Windows Driver(2000/xp), DLL(SDK) Power consumption 480W Power supply AC100V-120V/220V-240V Auto-switching Dimensions 342mm(W) x 345mm(H) x 489mm(D) Weight 28kg(61.8lb) Regulations UL, cUL, FCC, Class A, RoHS(*2) Accessories Dust box, Print Catcher, Power Cable

* 1 not incl. Data transferring time * 2 Other regulations planned to be applied.

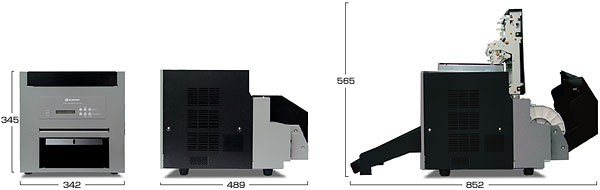

Unit : mm

Items P/No. No.of Prints Price 8" X 10" Size Consumable Set (203mm x 254mm) 164-11-09753 280 copies/set, 1 set/box Open 8" X 12" Size Consumable Set (203mm x 305mm) 164-11-09868 230 copies/set, 1 set/box Open

accessories

Click to enlarge   Shinko Dye Sub Printer 1245 Shinko CHC-S1245 Photo Printer   Click to enlarge   Shinko Dye Sub Printer 1245 Shinko CHC-S1245 Photo Printer   Click to enlarge   Shinko Dye Sub Printer 1245 Shinko CHC-S1245 Photo Printer       HighSlide Extra Images Powered by: ContributionCentral

Unit : mm

Items P/No. No.of Prints Price 8" X 10" Size Consumable Set (203mm x 254mm) 164-11-09753 280 copies/set, 1 set/box Open 8" X 12" Size Consumable Set (203mm x 305mm) 164-11-09868 230 copies/set, 1 set/box Open
