Overview

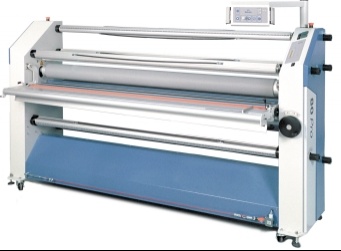

SEAL® 80 Pro
Looking to produce extra wide signs and displays with ease? Look no further than the new SEAL 80 Pro!
This dual-heated, 80" wide mounter, laminator and encapsulator has been designed to simplify the handling of over-sized prints for single person operation.
An extended version of the successful SEAL 62 Pro, this incredible laminator has all of the performance-led features you would expect from SEAL plus the following unique features:
|
 |
• Innovative feed table with integrated tensioning rollers, roll/image trough and flip down image guide
for optimum media handling and feeding.
• Flip-up pull rollers for flatter, smooth encapsulation and easy access when not encapsulating
• Combi-supply shafts for maximum flexibility
• Ergonomic touch pad control panel on a pivot arm for front or rear operation
• Output slitters to trim image to size during operation
• Automatic upper take-up shaft for removing release liners
• Trip cord for operator safety
| Maximum working width |
80" (2000 mm) |
| Maximum heated width |
80" (2000 mm) |
| Maximum substrate thickness |
1 1/2" (38mm) |
| Maximum speed |
20 ft./min. (6m/min) |
| Electrical requirements |
1N/PE-230 VAC +/- 10%, 50/60Hz 40A, |
| Ergonomic touch pad control on a pivot arm. |
|
| Feed table with integrated tensioning rollers and a flip-down image guide. |
|
| Output slitters, cooling fans and flip-up pull rollers. |
|
