Overview

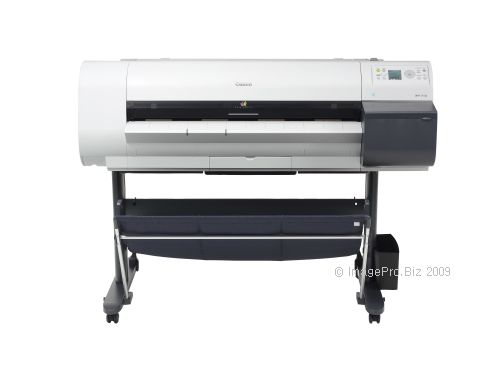

The Canon imagePROGRAF iPF710 36" large format printer produces vibrant full-bleed posters, clear text documents and crisp line drawings easily and quickly. It is a powerful print solution designed to meet the speed and precision requirements for CAD, MCAD, ECAD and GIS applications, with versatility to handle all-purpose, office applications. The imagePROGRAF iPF710 features a Reactive Ink system consisting of four highly colorfast dye inksùCyan, Magenta, Yellow and Blackùplus two channels of pigment-based Matte Black.
The iPF710 has on-board support for HP-GL/2 and HP-RTL files. It prints on a variety of media plus the inclusion of printing/application software programs provides the versatility and flexibility needed to be used in a wide variety of industries and applications, all in one captivating package. The new imagePROGRAF iPF710 has a large LCD panel and operates with a reduced amount of noise, which means greater ease of operation and more flexibility in various environments.
The iPF710 provides both quality and performance, demanded by today's market with the L-COA controller - the brain of the imagePROGRAF iPF series. The L-COA controller, alongside the 5-color Reactive Ink system, is designed to drive the best quality output at the highest possible speeds. Ideal for architects and engineers, businesses and schools, the iPF710 is the premier printing solution for any professional with a need for creating, processing and printing complex full-color presentations, signs, posters, renderings, CAD drawings, GIS maps and other large-format graphics quickly, effortlessly, and with remarkable detail.
Product Specifications
Specifications Printer Printer Type 5-Color 36-inch Printer Number of Nozzles Total: 30,720 MBK: 5,120 nozzles C, M, Y, BK: 2,560 nozzles each Nozzle Pitch 1,200 dpi Non-firing nozzle detection and compensation Print Resolution (Up to) 2,400 x 1,200 dpi (Max) OS Compatibility Windows«(2000/XP/Vista 32/64bit) MAC(OS9,OS10)1 Standard Interface USB 2.0 High-Speed 10/100 Base-T/TX Optional: IEEE 1394 (Firewire«) Ink Droplet Size 4 picoliter Ink Capacity 130ml per color2 Ink Types Dye/Pigment Reactive Ink Color Set Dye: Cyan, Magenta, Yellow, Black Pigment: Matte Black (two channels) Buffer/Ram 256 MB Hard Drive N/A Media Width Cut Sheet: 8" - 36" Roll: 10" - 36" Media Thickness Front Loading Manual Feed: 0.07 - 0.8mm (2.8 - 31.4mil) Roll: 0.07 - 0.8mm (2.8 - 31.4mil) Maximum Roll Print Length 59 Feet (18 meters)3 Maximum Media Roll Diameter 5.9" (150mm) Borderless Printing Width (Roll Media Only) 10", 14", 16", B2 (515 mm), B1 (728 mm), A1 (594 mm), A0 (841 mm), 24", 36" Paper-Feed Method Roll Feed: One Roll, front output Top Loading Manual Feed: One sheet, front output Front Loading Manual Feed: One sheet, front output Cassette: Up to 250 Sheets (Letter, Plain Paper), front output Languages GARO (Canon Proprietary), HP-GL/2, HP-RTL Noise Level (Approx.) Operation: 52 dB (A) or less Standby: 35dB (A) or less Acoustic Power: 6.6 Bels Physical Dimensions 43.1" (H) x 59.3" (W) x 34.3" (D) Weight Approximately 141.1 lbs with stand Power Source AC-100-120V (50-60Hz) Power Consumption Maximum: 100W or less Standby 6W or less Power Off: 1W or less (Compliant with Executive Order) Operating Environment Temperature: 59?-86? F (15?-30? C) Relative Humidity: 10-80% (No Condensation) User-replaceable items Print Head (PF-03), Maintenance Cartridge (MC-07), Ink Tanks (PFI-102) Software Included Canon Printer Driver, Digital Photo Front-Access, Printer Driver Extra Kit (Free Layout, imageRUNNER Linking Function), HDI Driver for AutoCAD4
